Set the size and the location of the window in the AppKit apps | How To Create macOS Apps

This article is part of a series of articles that create the Cocoa Hello World. This article explains how to set the minimum and maximum sizes of the window. It also adds the code to center the window to HelloWindowControllerclass.

This article utilizes the sample code created in the previous article. You can download it from the link provided below.

目次

Set the minimum size and the maximum size of the window

There are the following ways to set the minimum and maximum sizes of the window.

  • By the code
  • Configure in the storyboard file

This article explains the code. Why we chose the way that by code? Because,

  • Easy to trial and error to decide the value.
  • If you change the value in the future, easy to track the changes.

Add the code

Upon loading the storyboard file, AppKit triggers the NSWindowController.windowDidLoad() method. The windowDidLoad() method is a delegate method for initializing the window. Set the minimum size and the maximum size in this method.

Add the code as follows.

import Cocoa

class HelloWindowController: NSWindowController {

    let minWindowWidth: CGFloat = 200
    let minWindowHeight: CGFloat = 150
    let maxWindowWidth: CGFloat = 1200
    let maxWindowHeight: CGFloat = 900

    override func windowDidLoad() {
        super.windowDidLoad()

        window?.minSize = CGSize(width: minWindowWidth,
                                 height: minWindowHeight)
        window?.maxSize = CGSize(width: maxWindowWidth,
                                 height: maxWindowHeight)
    }

}

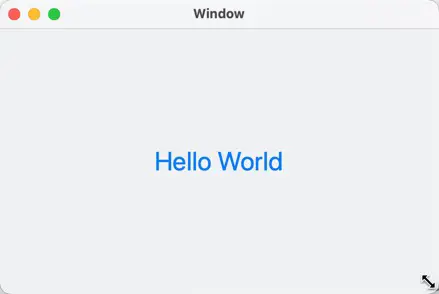

The following screenshot is a screenshot when the window is the minimum size.

Window at minimum size
Window at minimum size

Get the window

The window instance can be found in the NSWindowController.window property.

open var window: NSWindow?

Minimum size

Set the window’s minimum size to NSWindow.minSize property.

open var minSize: NSSize

Maximum size

Set the window’s maximum size to NSWindow.maxSize property.

open var maxSize: NSSize

Adjust the cursor

When you move the cursor to the corner or frame of the resizable window, the cursor is changed automatically to indicate the window is resizable. AppKit provides standard macOS cursor control without having to do anything.

For example, the cursor of the following screenshot indicates that you can expand or shrink the window.

You can expand or shrink
You can expand or shrink

The cursor indicates you can expand only when the window is at a minimum size.

拡大のみ可能
You can expand only

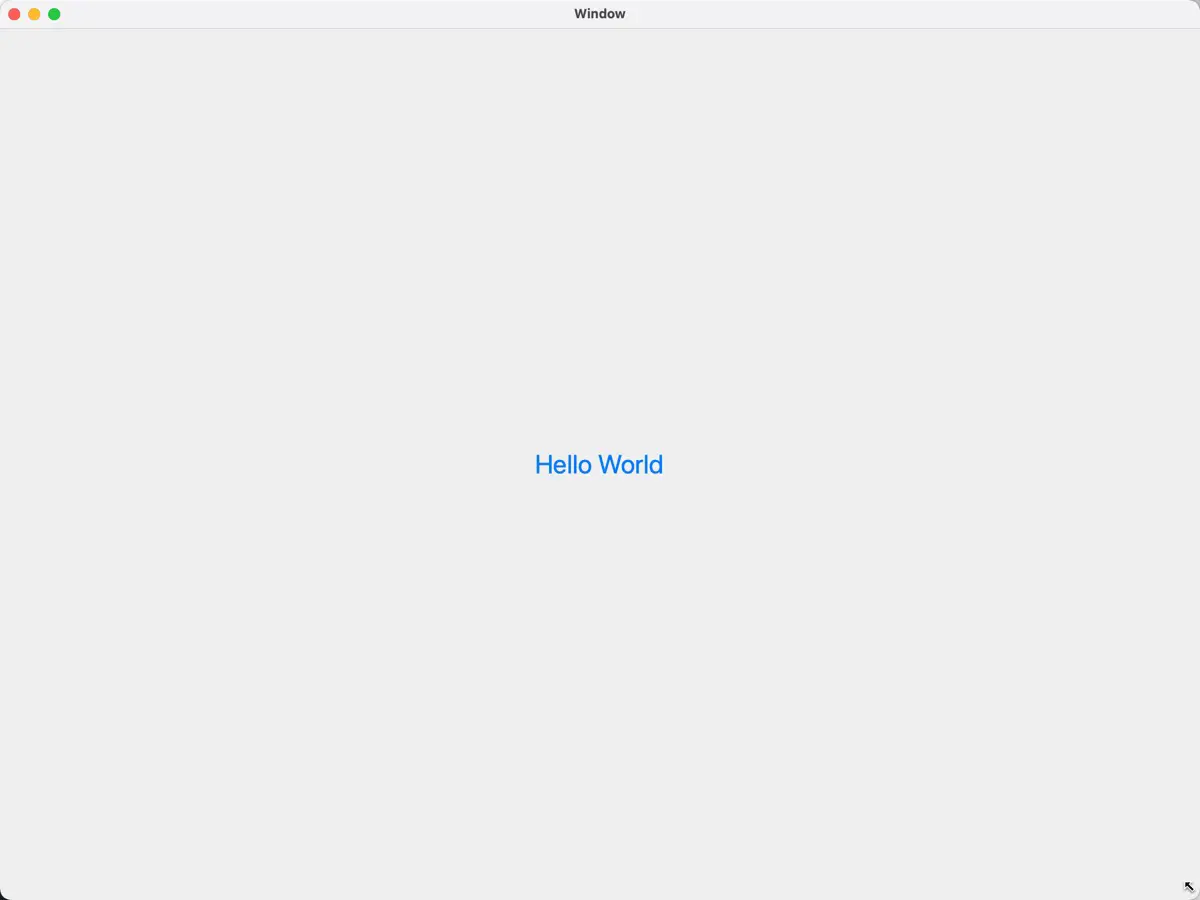

When the window is at maximum size, the cursor indicates that you can shrink only.

You can shrink only
You can shrink only

Centering the window

Add the code that centers the window.

Add the code

When considering how to center the window, you might initially think that you need to calculate the location using the screen and window sizes.

However, the NSWindow class has a method to move the window to center of the screen, so you can center the window by simply using this method.

Change the code as follows.

import Cocoa

class HelloWindowController: NSWindowController {

    let minWindowWidth: CGFloat = 200
    let minWindowHeight: CGFloat = 150
    let maxWindowWidth: CGFloat = 1200
    let maxWindowHeight: CGFloat = 900

    override func windowDidLoad() {
        super.windowDidLoad()

        window?.minSize = CGSize(width: minWindowWidth,
                                 height: minWindowHeight)
        window?.maxSize = CGSize(width: maxWindowWidth,
                                 height: maxWindowHeight)

        window?.makeKeyAndOrderFront(nil)
        window?.center()
    }

}

Added code is the following.

window?.makeKeyAndOrderFront(nil)
window?.center()

About the window list and the key window

macOS has a window list that manages the displayed window on the screen.

While windowDidLoad() method is running, the window is not in the window list, so it is not displayed yet.

Currently, the center() method can’t center the window because the screen is not decided.

Therefore, we employ the NSWindow.makeKeyAndOrderFront() method. The makeKeyAndOrderFront() method does the following.

  • Move the window to the front of the screen.
  • Make the window a key window.
  • Show the window.

What is a key window?

Multiple apps on a screen simultaneously, and each has multiple windows. When you press the key, the frontmost window receives and processes the key-down event. AppKit calls this window a key window.

Not center?

Have you noticed that the window does not appear perfectly centered when you use the center() method? Instead, it is located slightly above.

This is not a bug.

This specification is designed this way because human vision tends to notice a position that slightly off-center more than a perfectly centered one.

Download the sample code

The sample code was created in this article can be downloaded here.
